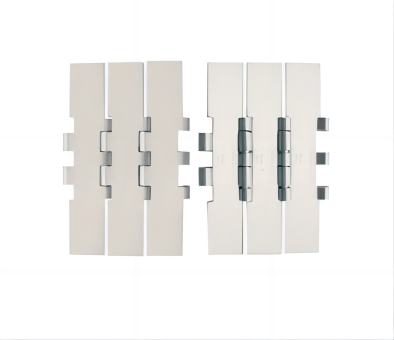

Metal Flat top chain (800 Series)

Metal Flat top chain (800 Series)

Model: 800

Plate Materials: S(SS430) or Stainless Steel(SS304) Pin Material: Cold rolled austenitic stainless steel

Product Details

Technical Specifications

	ref.No	Width W		Weight	bfl.Radius		Working Load (N)
	ref.No	mm	inch	kg/m	mm	inch	5800
SS430	S800-K750	190.5	7.5	5.80	50.0	2.0
	S800-K1000	254.0	10.0	7.73	50.0	2.0
	S800-K1200	304.8	12.0	9.28	50.0	2.0
SS304	SS800-K750	190.5	7.5	5.80	50.0	2.0	7500
	SS800-K1000	254.0	10.0	7.73	50.0	2.0
	SS800-K1200	304.8	12.0	9.28	50.0	2.0
