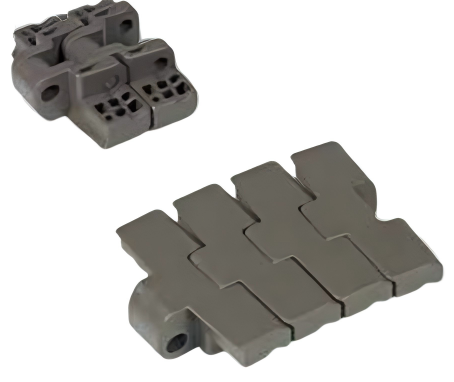

Flat Top Chains (783M series )

Plate Materials: LF-Grey Pin Material: Carbon Steel Working load N (21°C): 2550 N Working temp : -30°C to + 90°C Max speed : 50m/min by lubricant , 30m/min by dry Max conveyor length: 15 M Supply unit : 3.048 m =10ft or 1 m = 26 pcs NOTE: Sprockets same as 1060 series Corner track same as 1060 series
